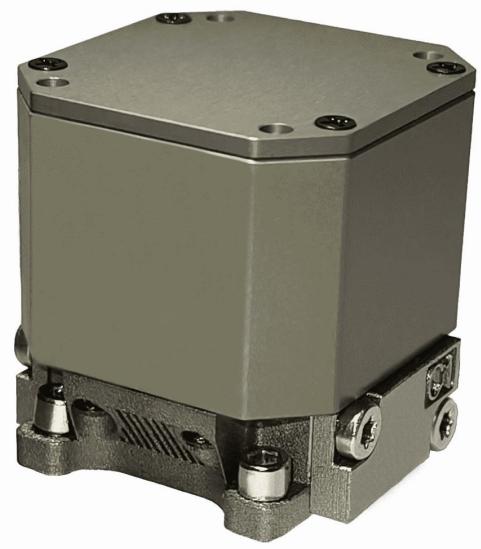

SH1e
The world's smallest and fastest miniature servo valve.
Key Features
• <2.5ms step response, >200 Hz frequency response
• Onboard electronics and LVDT-grade sensing
• Up to 7 l/min flow, capable of fluid and pneumatic

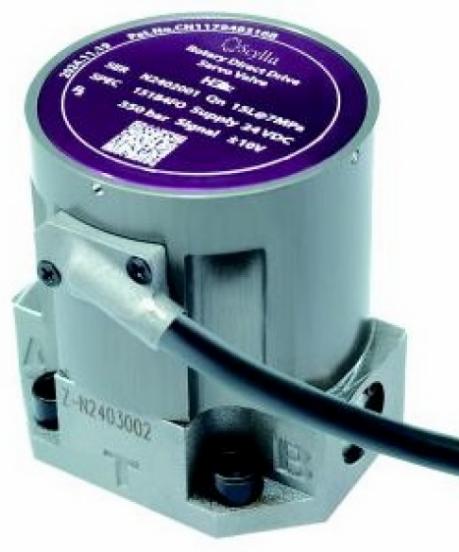

SH3lc
The world's smallest and fastest direct drive S01 servo valve.
Key Features
• 2.5ms step response, 220 Hz frequency response
• Onboard electronics and LVDT-grade sensing
• Up to 15 l/min flow, capable of fluid and pneumatic

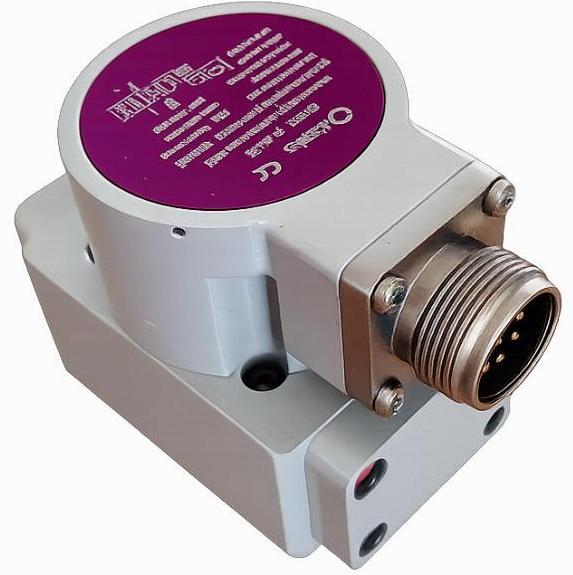

SH7lc-A
The world's smallest and fastest direct drive NG6 servo valve.
Key Features
• 3ms step response, 230 Hz frequency response
• Onboard electronics and LVDT grade sensing
• Up to 40 l/min, extremely high shear force drive

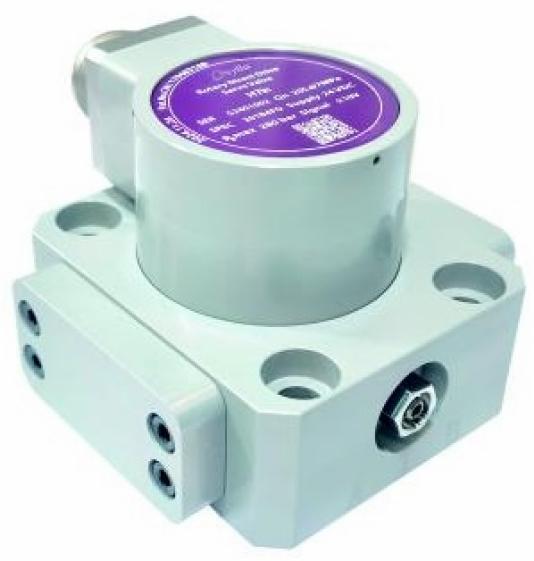

SH7lc
Faster than Moog G761, and less expensive too.
Key Features
• 3ms step response, 230 Hz frequency response
• Onboard electronics, LVDT grade sensor feedback
• Up to 63 l/min, ISO 10372-04-04-0-92 interface (Moog drop-replacement)

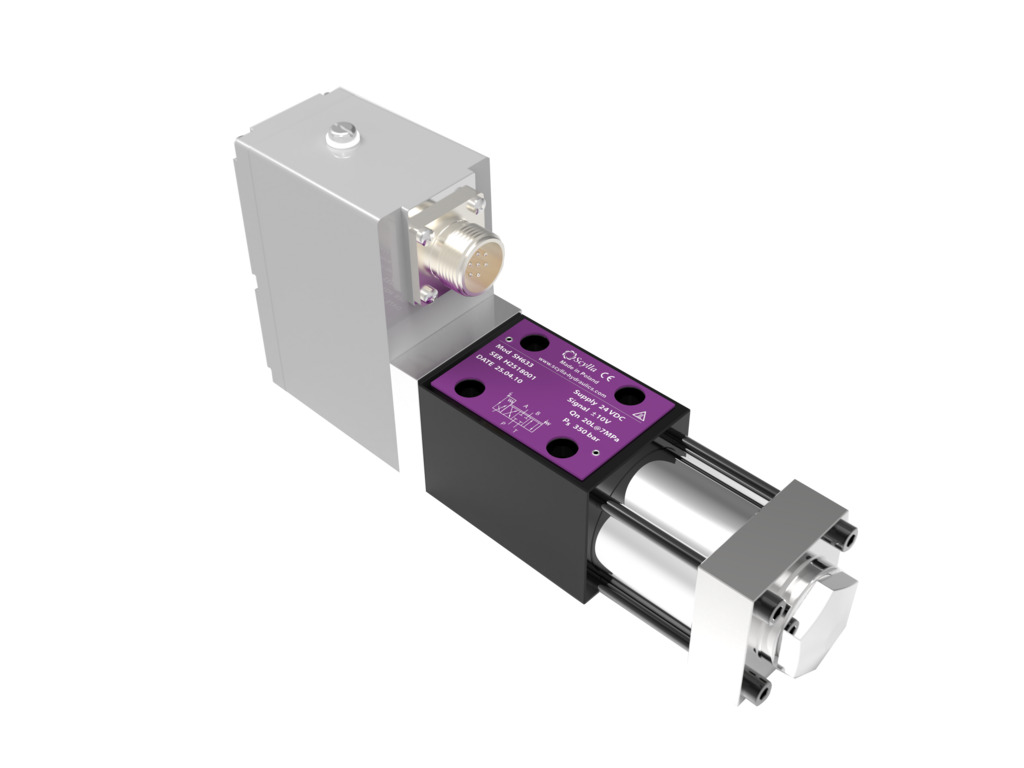

SH633
Key Features
• Driven directly by a high-force permanent magnet linear force motor with no pilot oil source required
• Step response time ≤12ms and frequency response ≥90Hz
• Rated flow up to 40 L/min with a maximum operating pressure of 350 bar

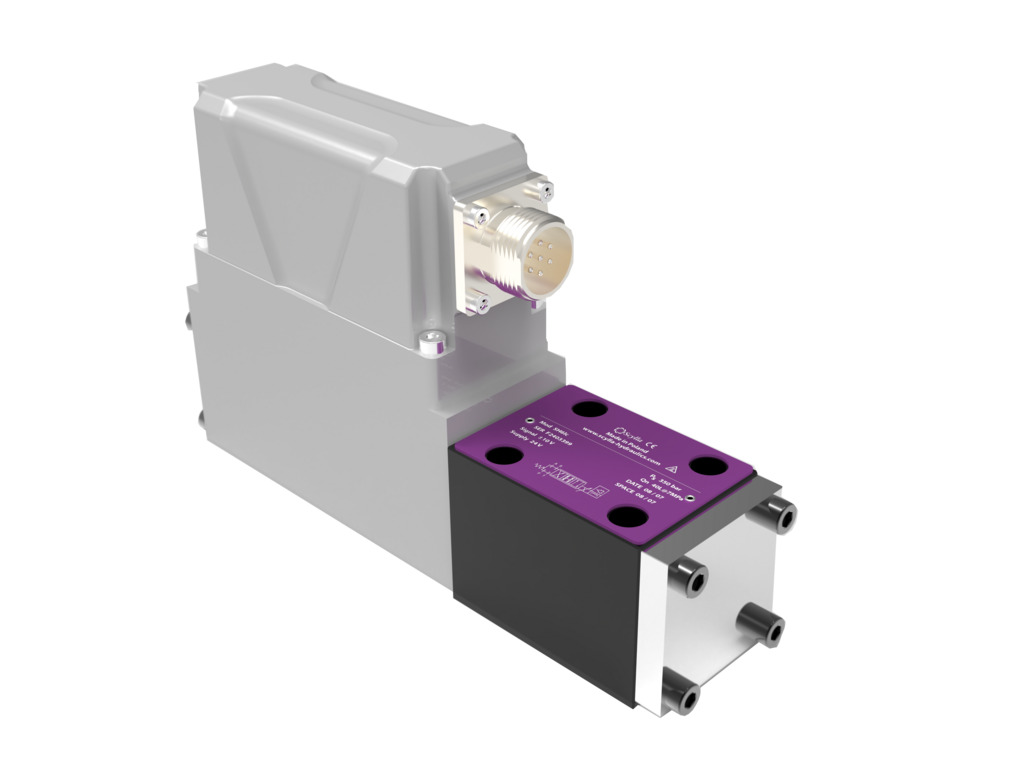

SH6lc
Key Features
• Directly operated proportional servo valve with control piston and sleeve in servo quality
• Maximum working pressure of 315 bar (P, A, B) and nominal flow of 40 l/min
• Integrated on-board electronics (OBE) calibrated at the factory with 4/4 fail-safe position when switched off

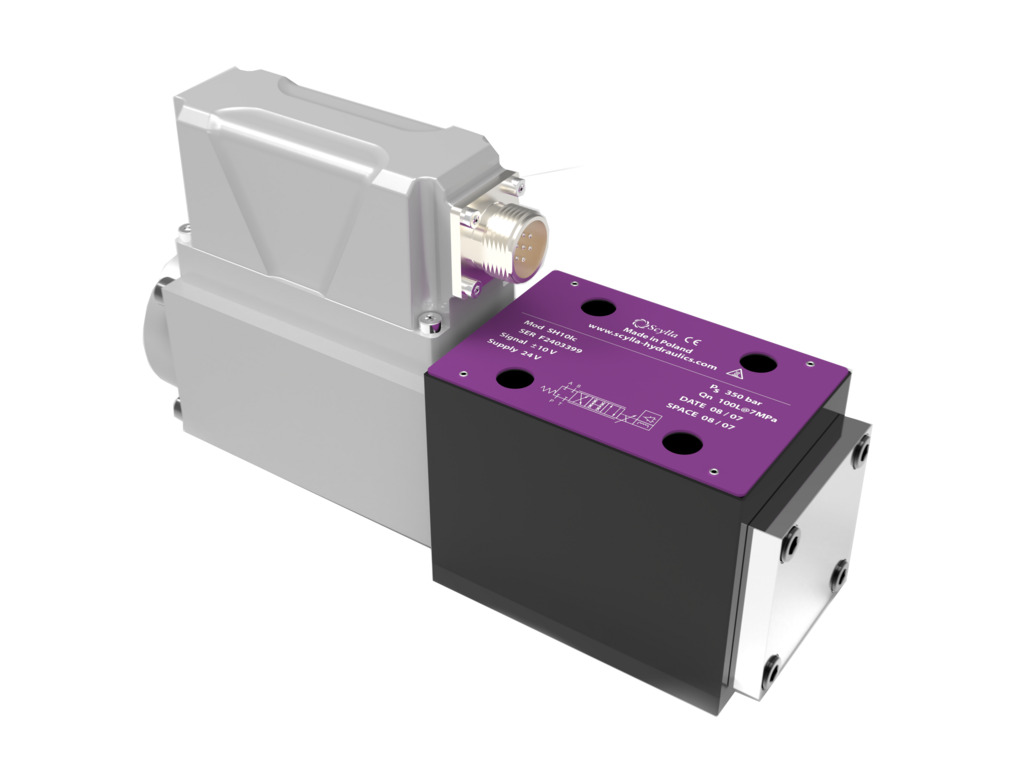

SH10lc
Key Features
• Direct operated proportional servo valve, with control piston and sleeve in servo quality
• Maximum working pressure P, A, B 315 bar
• Electrical position feedback and on-board electronics (OBE), calibrated at the factory

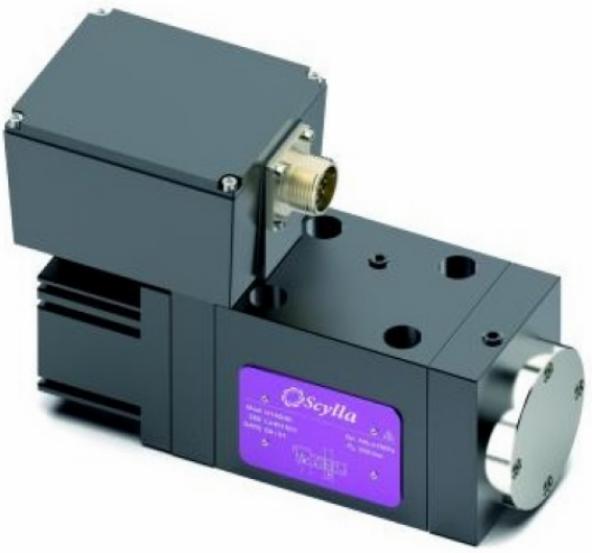

SH10shr
The world's fastest servo valve, period.
Key Features
• < 2ms step response, 350 Hz frequency response
• Onboard electronics, voice coil drive (Halbach array), dual sensing (displacement & speed)
• Up to 80 l/min, NG 10 port pattern

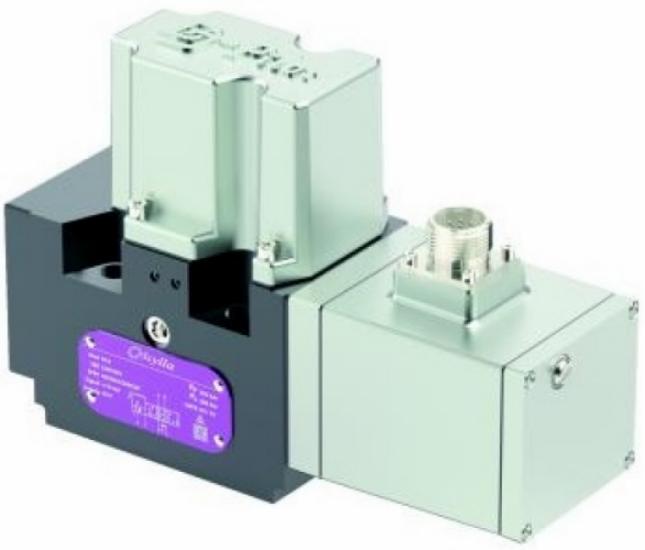

SH10
Lightening fast NG10 servo valve with high contamination resistance.
Key Features
• < 10ms step response, 200 Hz frequency response
• Dual stage direct drive without parasitic flow
• Up to 200 l/min, performance independent of supply pressure

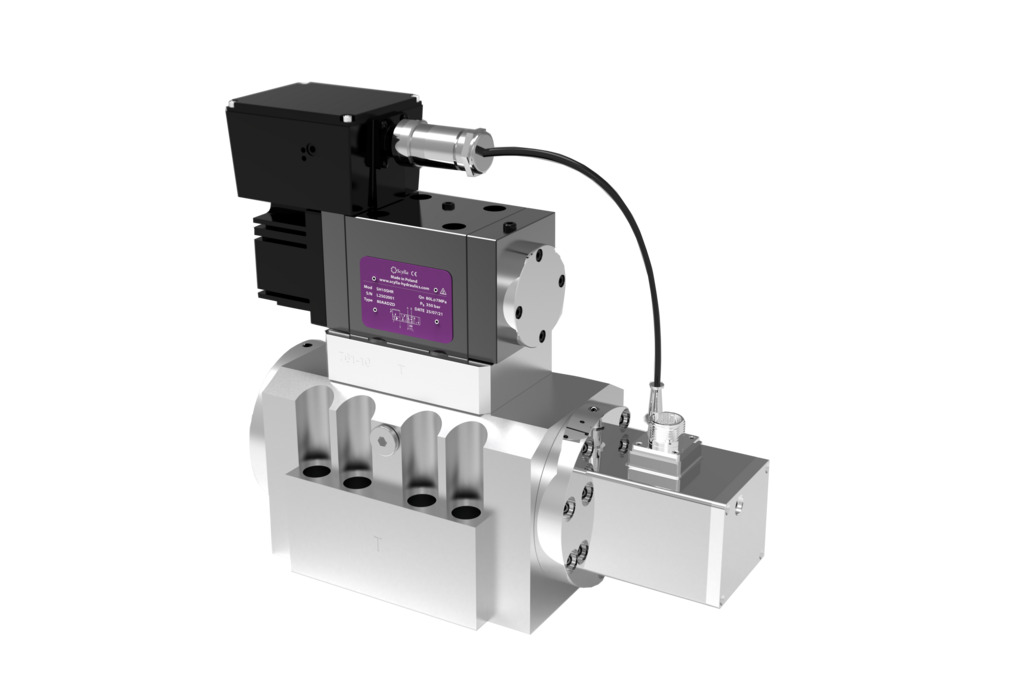

SH792
Key Features
• Rated flow up to 1000 L/min with response times between 4-12 ms
• Integrated electronics (OBE) utilizing SMD technology and LVDT position feedback
• Available with Standard or High Response (SH10SHR) pilot valves
